Review Gigabyte G1 Assassin 2: Motherboard Gaming X79 untuk Military Fan Boy

19.58  radittya priya  1 comment

Varian X79 dari seri G1 Killer telah hadir di lab JagatReview. Motherboard Gigabyte yang mengusung nama G1 Assassin 2 membuat kita teringat pada pendahulunya, G1 Assassin. Apakah motherboard ini pantas disebut sebagai penerus board tersebut?  Mari kita simak bersama review motherboard ini.

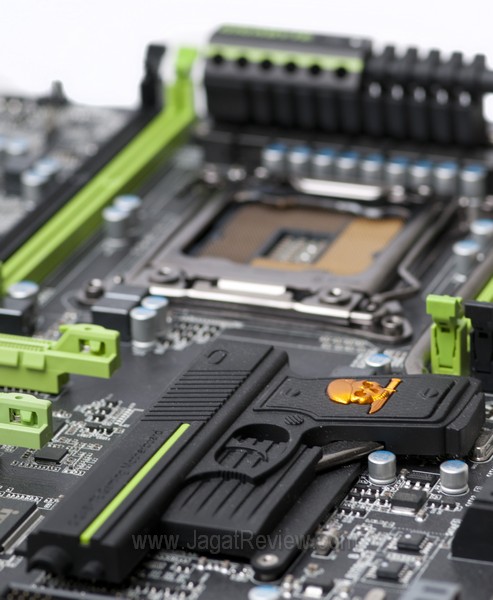

Sekilas terlihat motherboard ini menunjukkan bahwa dia mampu memberi “rasa” baru pada G1 Gaming serie. Berbeda dengan G1 Assassin pertama yang hanya menggunakan magazine senjata sebagai heatsinknya, G1 Assassin 2 menggunakan sebuah pistol sebagai heatsinknya. Apakah perbedaan heatsink ini mengisyaratkan perbedaan performa? Mari kita simak review lengkap dibawah ini.

Spesifikasi

CPU
  1. Support for Intel® Core™ i7 processors in the LGA2011 package
  2. L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
  1. Intel® X79 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. 4 channel memory architecture
  3. Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Audio
  1. 1 x Creative CA20K2 chip
  2. Support for Dolby® Digital Live and DTS™ Connect
  3. Support for X-Fi Xtreme Fidelity® and EAX® Advanced HD™ 5.0 technologies
  4. High Definition Audio
  5. 2/4/5.1/7.1-channel
  6. Support for S/PDIF Out
LAN
  1. 1 x Bigfoot Killer E2100 chip (10/100/1000 Mbit)
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
  3. 2 x PCI Express x1 slots
    (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
  4. 1 x PCI slot
Multi-Graphics Technology
  1. Support for 3-Way/2-Way AMD CrossFireX™ / NVIDIA SLI technology.
Storage Interface Chipset:
  1. 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
  2. 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
2 x Marvell 88SE9172 chips:
  1. 2 x SATA 6Gb/s connectors (GSATA3 6/GSATA3 7) supporting up to 2 SATA 6Gb/s devices
  2. 2 x eSATA 6Gb/s connectors (eSATA/USB Combo) on the back panel supporting up to 2 SATA 6Gb/s devices
  3. Support for RAID 0 and RAID 1
USB Chipset:
  1. Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, including 2 eSATA/USB Combo, 6 ports available through the internal USB headers)
2 x Fresco FL1009 chips:
  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 4 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 4 x fan headers
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 3 x USB 2.0/1.1 headers
  11. 1 x USB 3.0/2.0 header
  12. 1 x Clear CMOS jumper
  13. 1 x Trusted Platform Module (TPM) header
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x CPU overclocking button
  3. 1 x BIOS switch button
  4. 1 x Clear CMOS button
  5. 1 x optical S/PDIF Out connector
  6. 6 x USB 2.0/1.1 ports
  7. 2 x USB 3.0/2.0 ports
  8. 2 x eSATA/USB Combo connectors
  9. 1 x RJ-45 port
  10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
I/O Controller
  1. iTE IT8728 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  8. Support for Smart 6™
  9. Support for eXtreme Hard Drive (X.H.D)
  10. Support for ON/OFF Charge
  11. Support for Cloud OC
  12. Support for 3TB+ Unlock
  13. Support for TouchBIOS
  14. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft® Windows 7/Vista/XP
Form Factor
  1. E-ATX Form Factor; 30.5cm x 26.4cm
Pages: 1 2 3 4 5 6 7 8 9
